Compact Mini Split Condensate Pump, Ultra Quiet

• Mini Split & HVAC System Compatibility: Designed for ductless mini split air conditioners, ducted HVAC equipment, wall-mounted indoor AC units, ceiling cassette systems, fan coil units, air handlers, dehumidifiers, and other condensate-producing equipment. The compact pump fits below indoor AC units and helps remove condensate when gravity drainage is not available, making it ideal for basements, bedrooms, offices, garages, attic installations, apartments, small shops, and light commercial HVAC applications. Suitable for residential and light commercial air conditioning systems that require re
• Ultra-Quiet Operation: Engineered for low-noise performance, this mini split condensate pump helps maintain a quiet and comfortable indoor environment. Its vibration-dampening design and fully potted motor help reduce operating noise while supporting smooth, reliable condensate drainage. With sound levels at ≤20 dB(A) at 1 meter, this HVAC condensate pump is ideal for bedrooms, home offices, apartments, hotel rooms, and other noise-sensitive spaces.

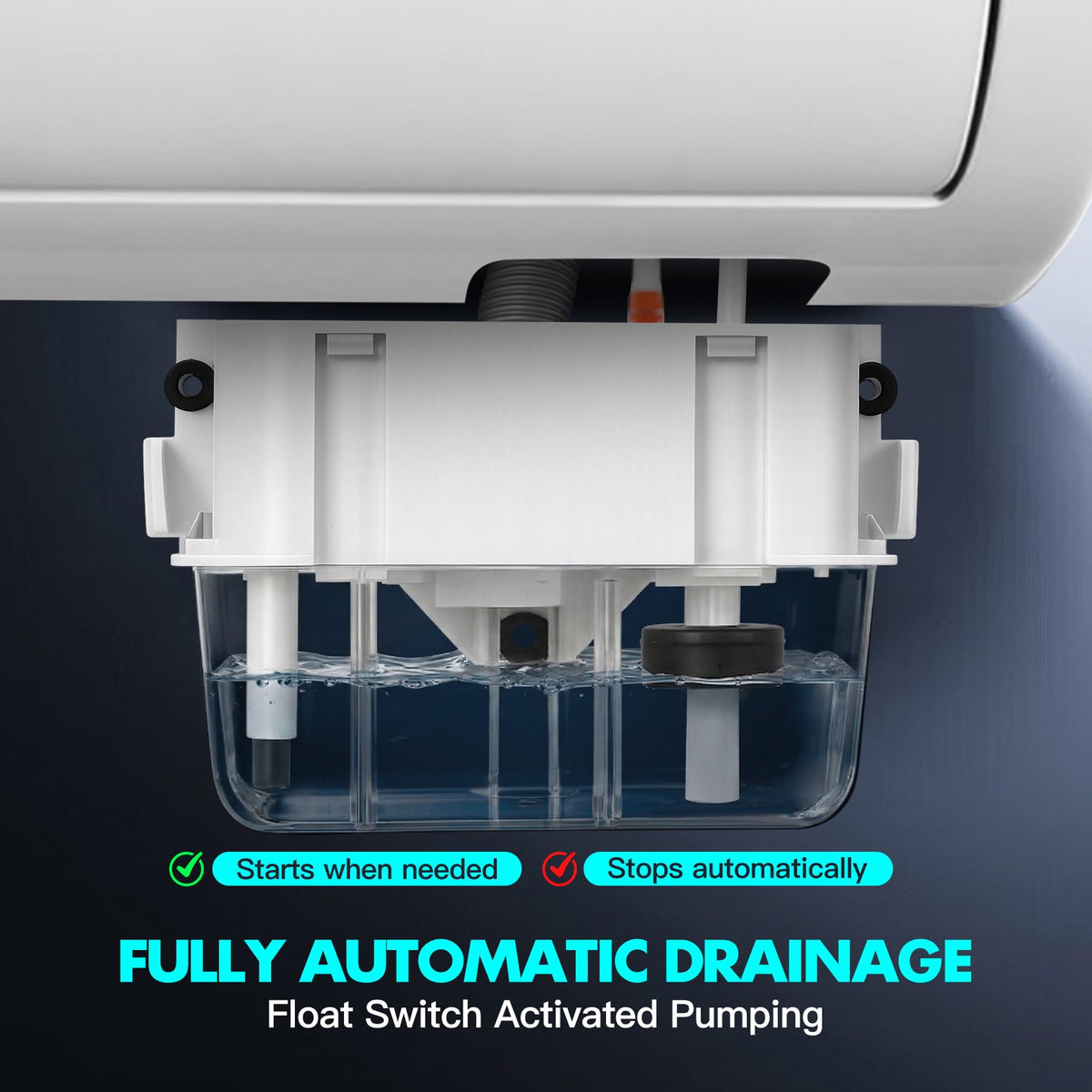

• Fully Automatic Float Switch Operation: The mini split condensate pump uses float switch detection to automatically control pump operation based on water level inside the reservoir. As condensate rises, the float activates the pump to remove water; when the level drops, the pump stops automatically. This automatic start-stop function helps reduce overflow risk and supports efficient condensate removal in mini split and HVAC systems.

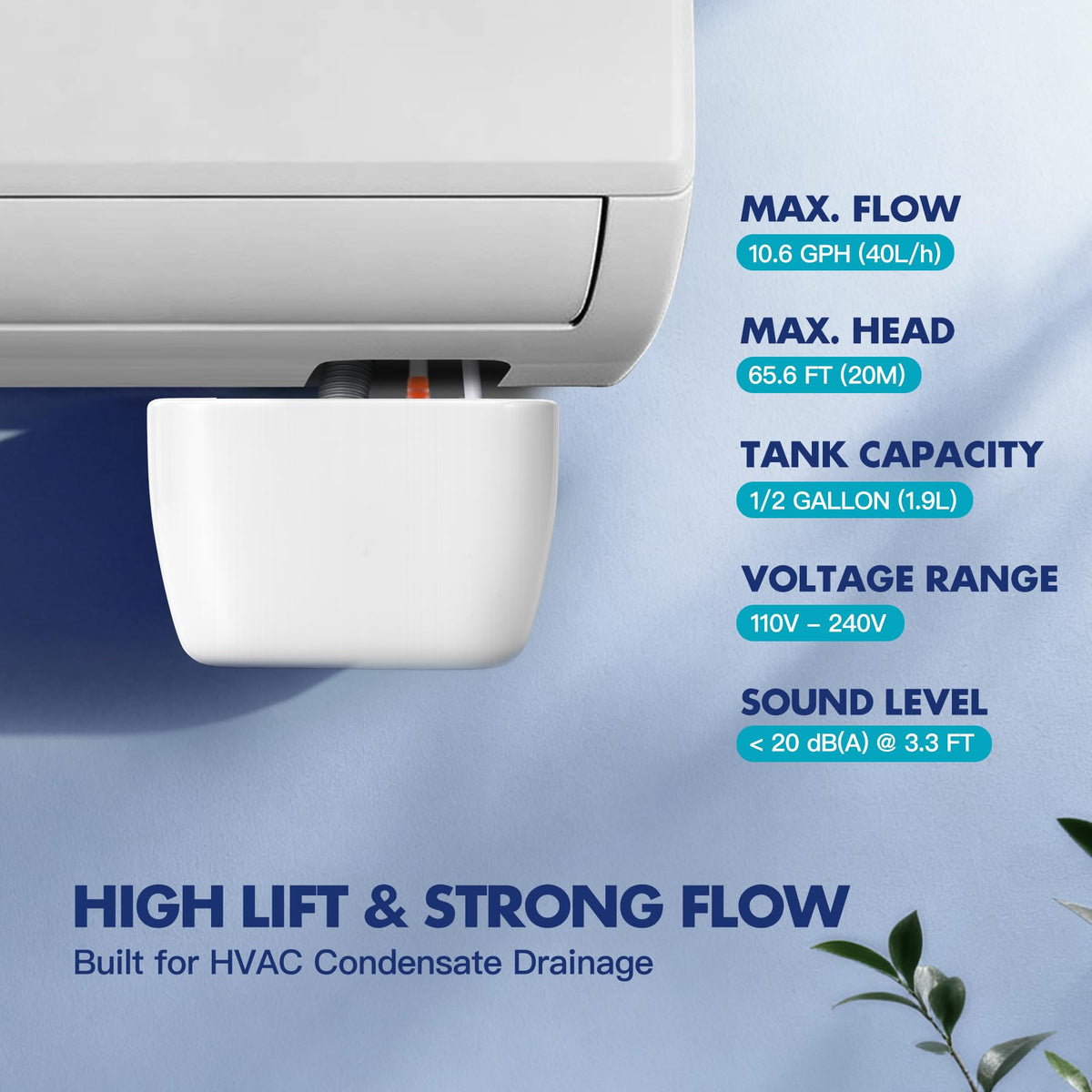

• High Performance Drainage: The mini split condensate pump delivers a maximum flow rate of 40 L/h (10.6 GPH) @ 0 head and a maximum discharge head of 20 m (65.6 ft). The high-efficiency motor supports fast, reliable condensate drainage for typical AC and HVAC drain lines. Rated for continuous operation, this condensate pump provides dependable performance for everyday air conditioning and dehumidifier applications.

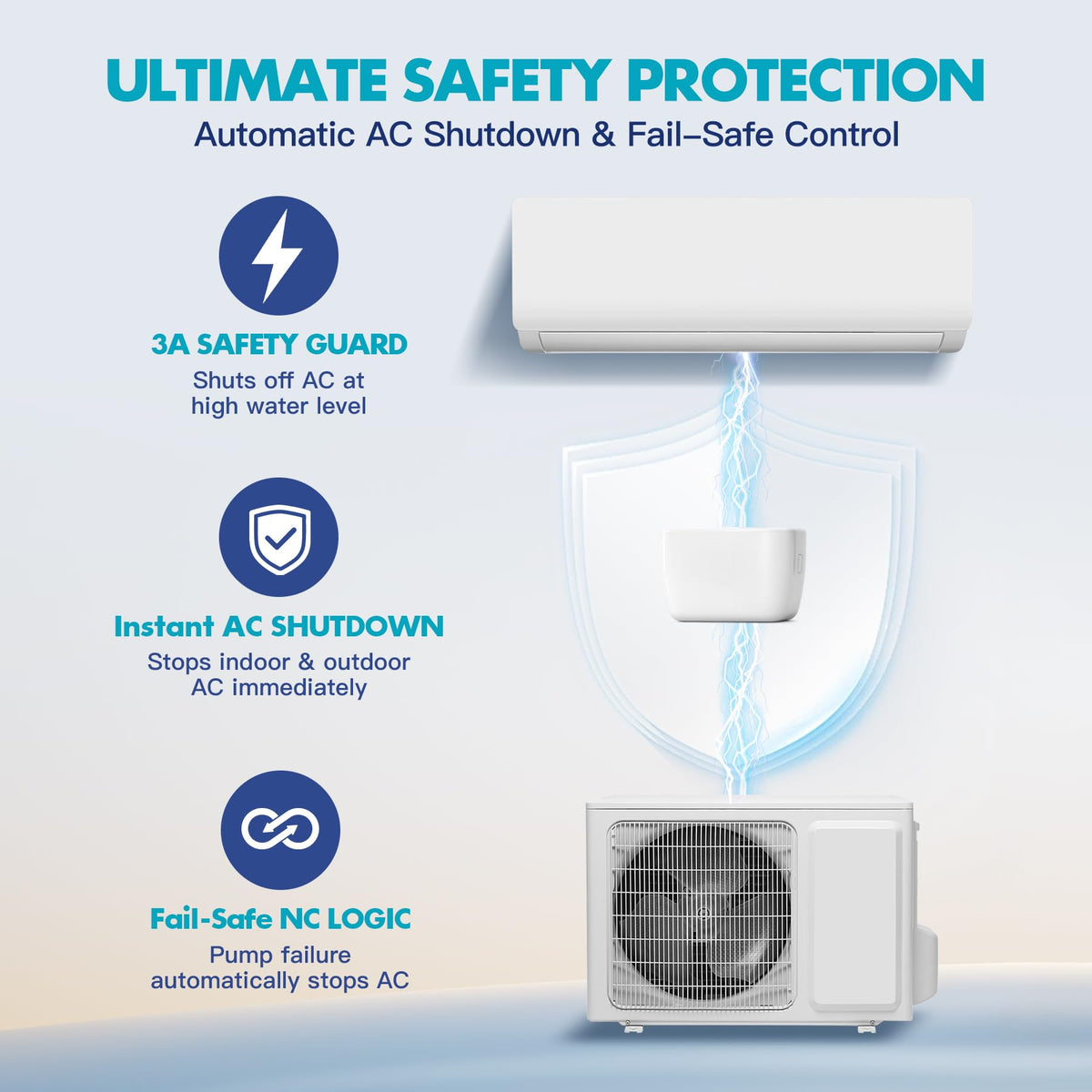

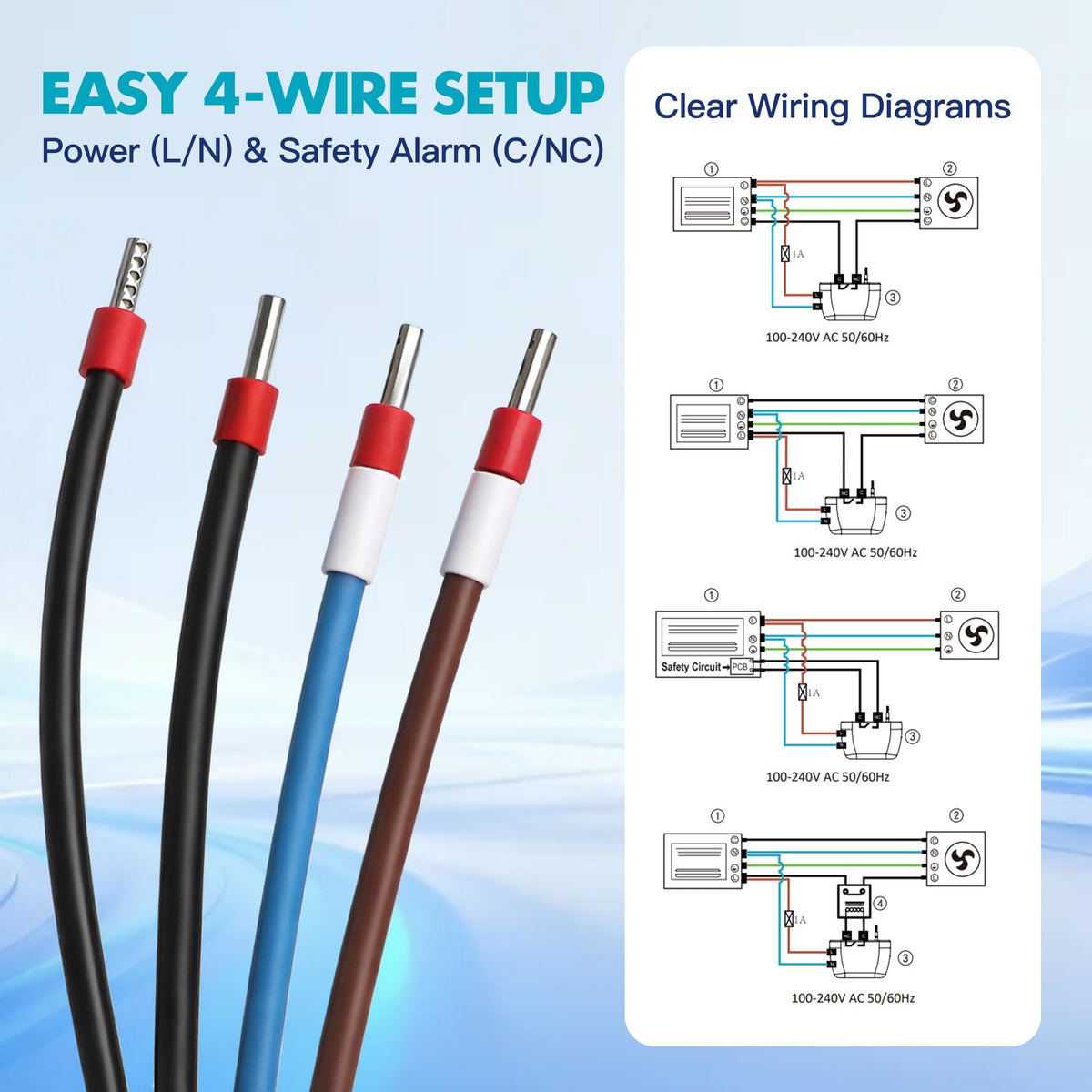

• Overflow Safety Switch Protection: Built with a 3A normally closed safety switch, this mini split condensate pump helps protect against condensate overflow by supporting automatic AC shutdown through the built-in safety circuit. If the water level rises abnormally due to pump blockage, drainage restriction, or system failure, the safety switch helps interrupt operation to reduce the risk of water leaks and property damage. The fully potted motor helps resist moisture and vibration, built-in thermal protection helps guard against overheating, and the included anti-siphon valve helps prevent bac

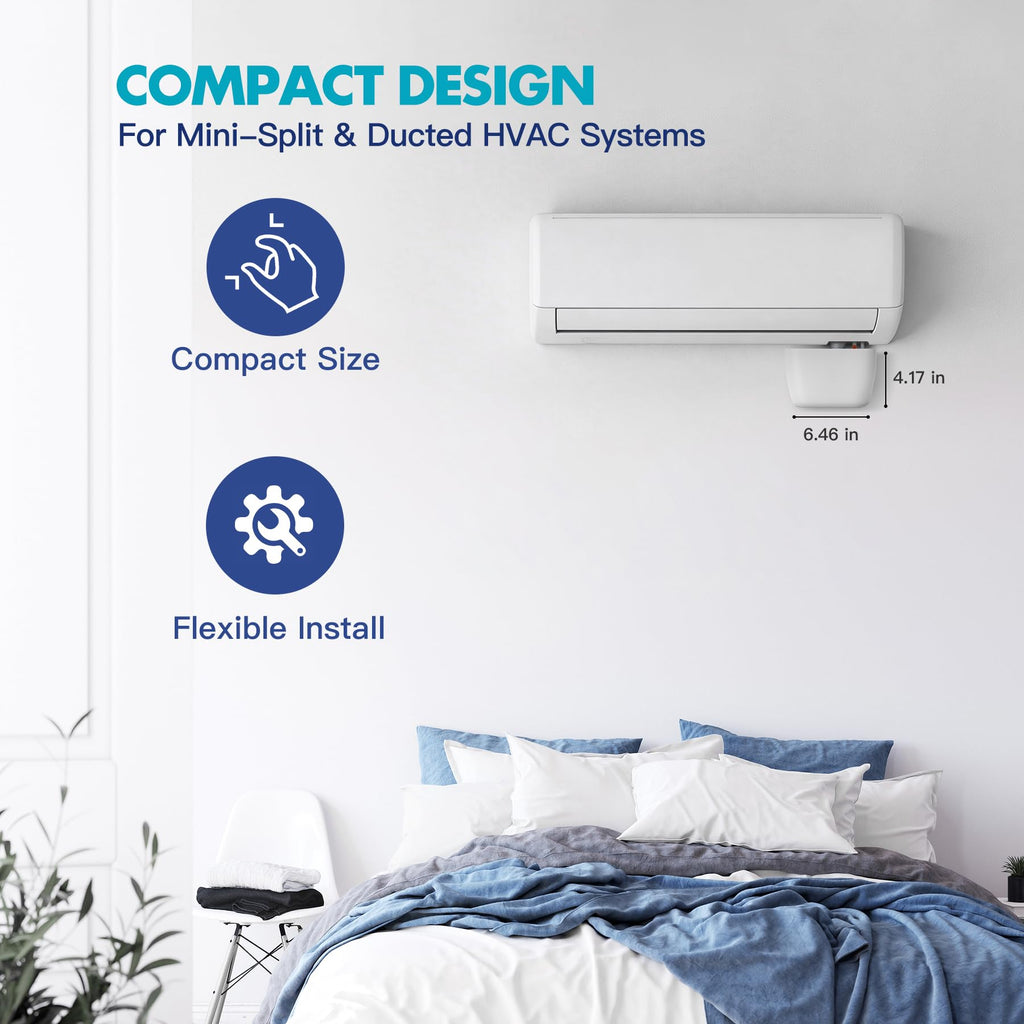

• Compact Design & Flexible Installation: The mini split condensate pump features a compact split-style design with overall dimensions of 164 × 70 × 106 mm (L × W × H). The slim structure allows flexible placement near indoor units or external wall-mounted locations. This compact design fits easily into tight spaces commonly found with mini split and HVAC installations.

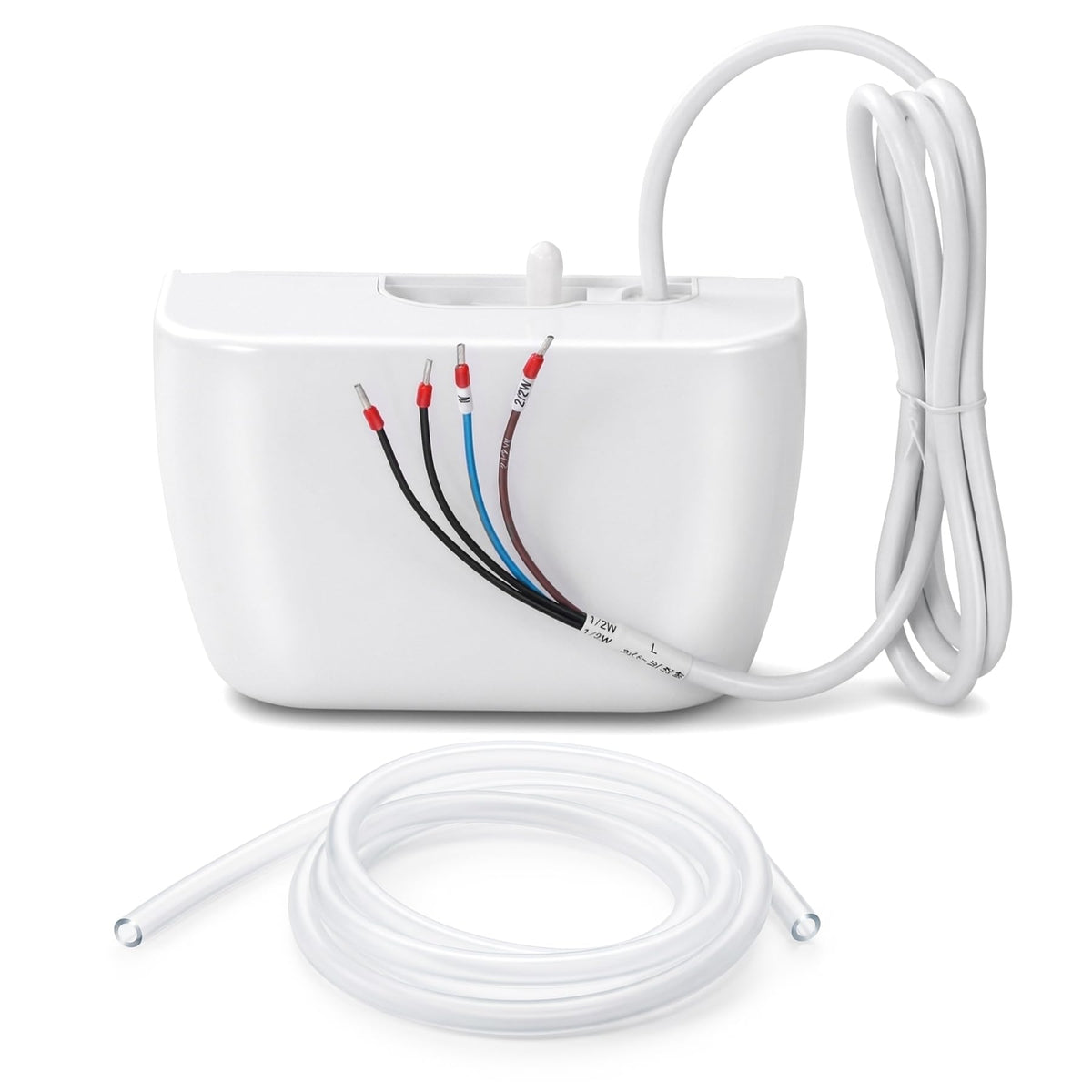

• Package Contents & ETL Certification: The mini split condensate pump kit includes: pump assembly ×1, anti-siphon connector ×1, 150 mm / 6" vinyl tube (6 mm / 1/4" ID) ×1, fuse ×1, expansion screws ×3, and cable ties ×5. The HVAC condensate pump is ETL certified for indoor use, supporting safety and compliance expectations in US market applications.

Specifications

• Color: White
• Material: Plastic
• Style: Wedge Undermount
• Product Dimensions: 6.46"L x 2.76"W x 4.17"H
• Power Source: Corded Electric
• Maximum Flow Rate: 40 liters per hour
• Maximum Lifting Height: 65 feet
• Voltage: 110 volts_of_alternating_current
• Number of Packs: 1
• Number of Items: 1
• Unit Count: 1 Count
• Flow Rate: 40 liters per hour
