Little Giant VCMA-20ULS 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow

• Plastic
• Imported
• AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and dehumidifiers
• THERMALLY PROTECTED, HIGH PERFORMANCE MOTOR: 1/30 HP, 1.5 Amps, 93 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
• BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)

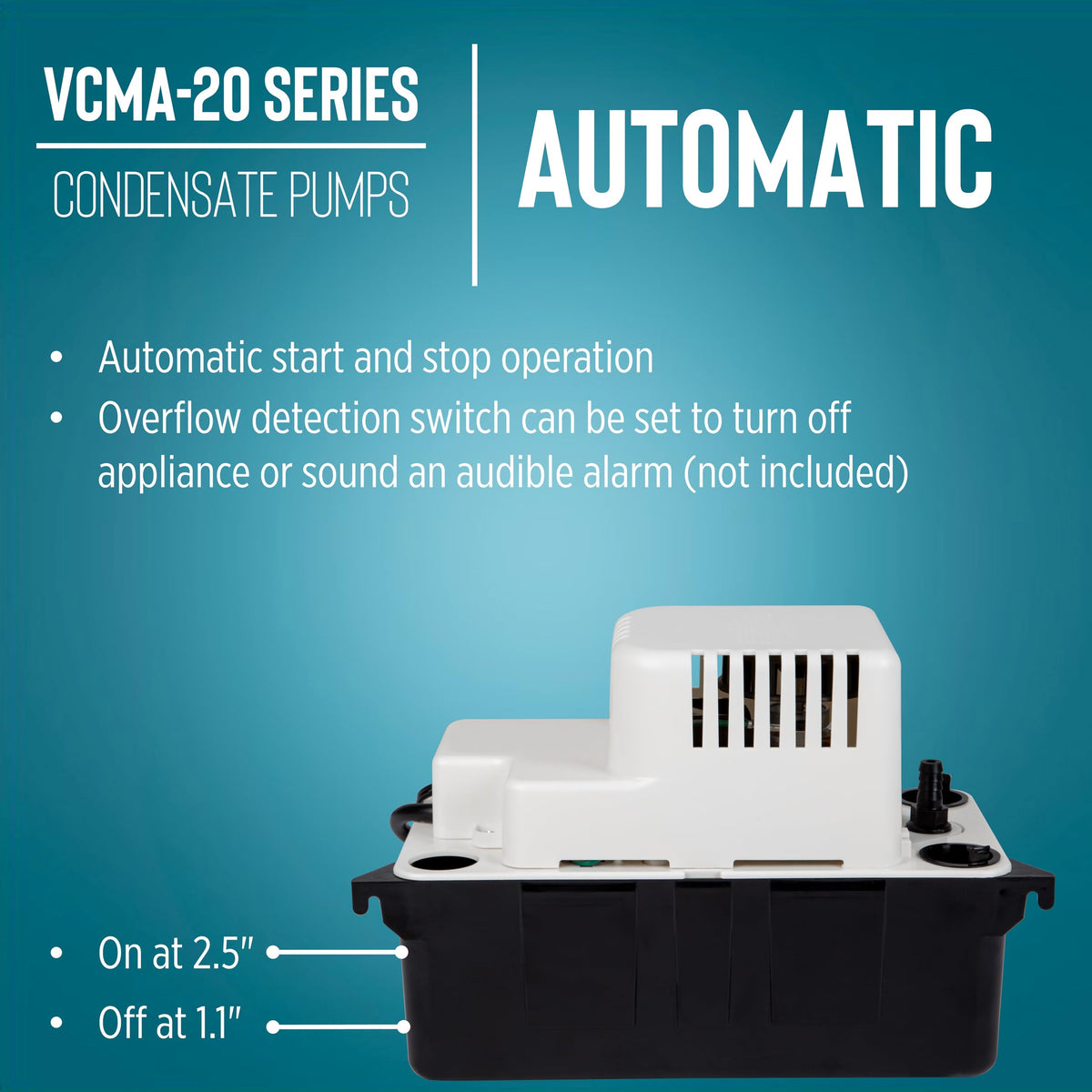

• INCLUDES OVERFLOW DETECTION SWITCH: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required

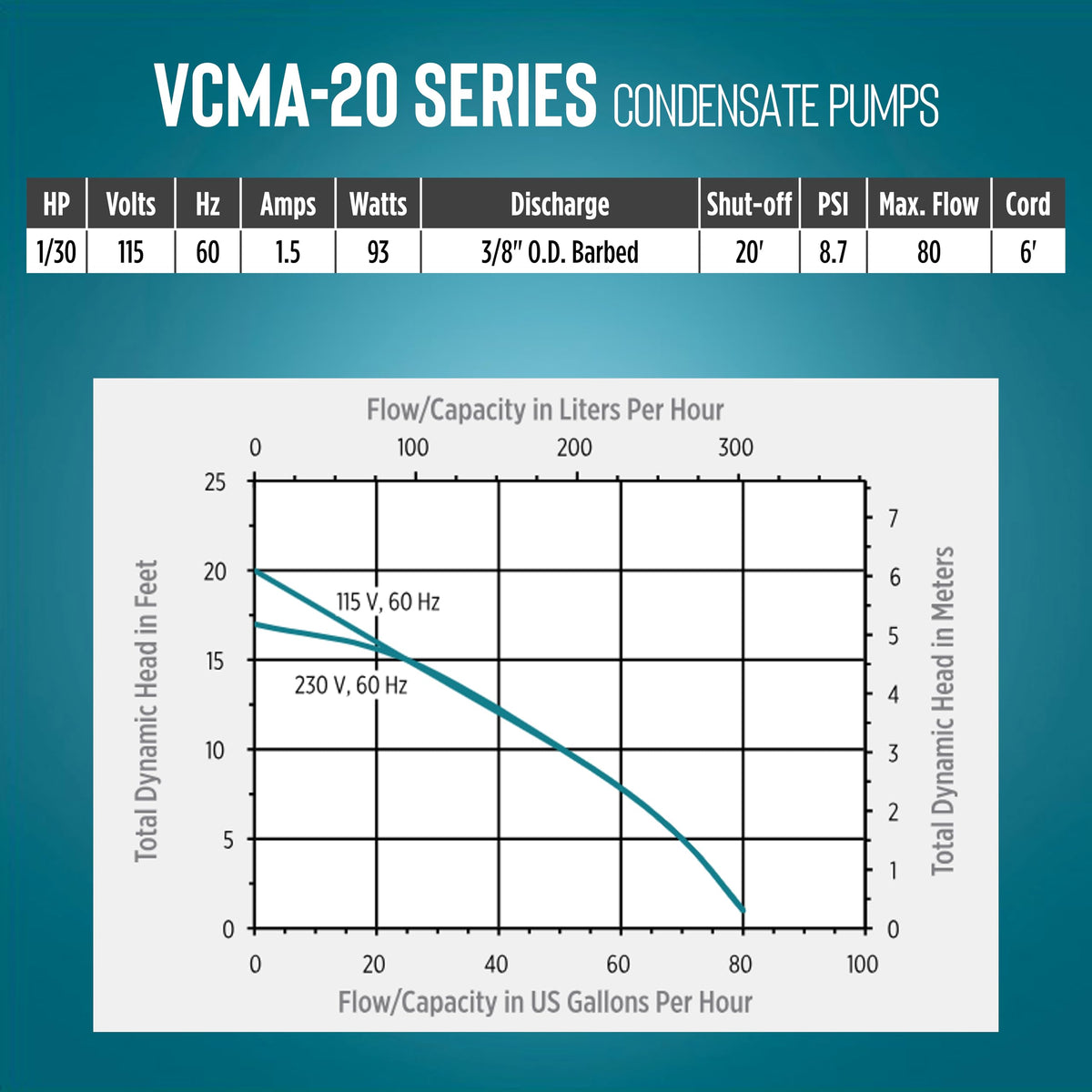

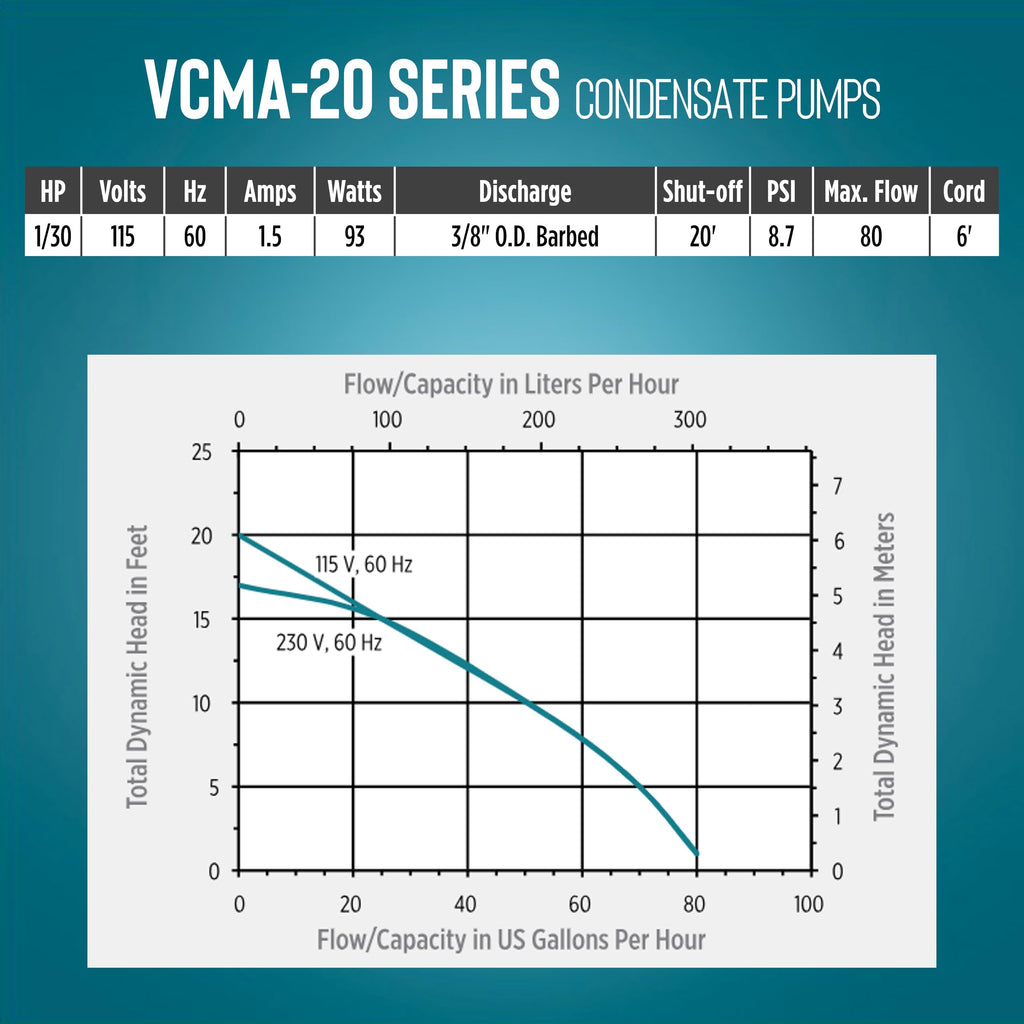

• SPECIFICATIONS: 1/30 HP; 115 Volts, 1.5 Amps, 93 Watts, 3/8" OD barbed discharge, 80 GPH at 1' lift, 20' shut-off, max 8.7 PSI, three 1-1/8" inlet drain holes, 6' cord; max water temperature: 140° F

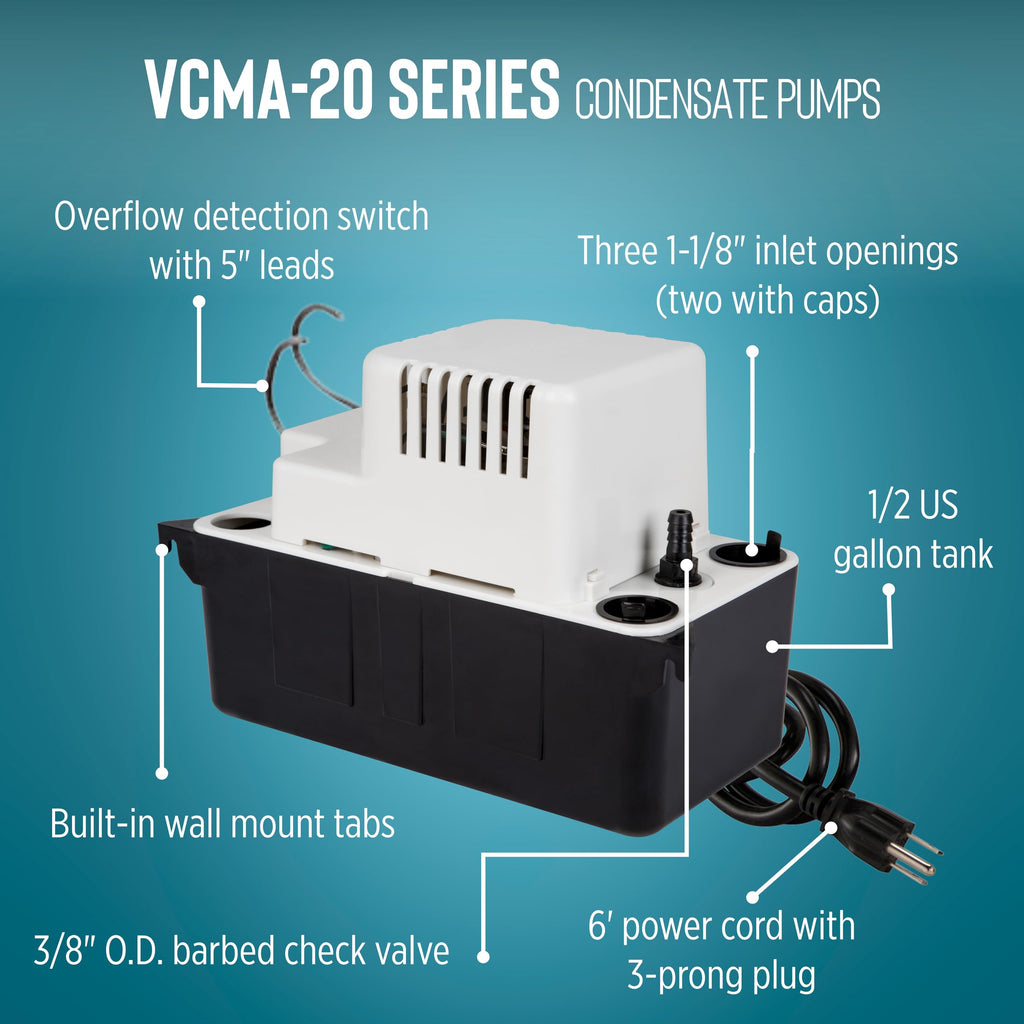

Product Description The Little Giant VCMA-20ULS 115-volt condensate removal pump is a 1/30 hp pump that is designed for collecting, detecting and removing condensation from air conditioners, dehumidifiers and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensate and condensing boilers. This unit includes a 1/2-gallon condensate holding tank and a 3/8" O.D. barbed discharge adapter with a built-in check valve, as well as a 6' power cord with 115V plug and an overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm (alarm not included); basic wiring knowledge is required. The high-performance 115-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadian standards.FEATURES & BENEFITS:- 1/30 hp high-performance motor pumps 80 gallons of water per hour- three 1-1/8" inlet openings - two with covers- ABS, tank, motor cover and volute- Stainless steel motor shaft- 1/2-gallon tank capacityINSTALLATION TIPS:- This pump comes shipped with a cardboard insert marked "REMOVE". Please remove and discard this insert before operating pump. Failure to remove the insert will cause the pump to overflow.- Check the tubing for obstructions or kinks. Clean or replace the tubing, if necessary.This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc. From the Manufactu

Specifications

• Color: Black/White
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Style: 115V with Overflow Detection Switch
• Product Dimensions: 11"L x 5"W x 7"H
• Power Source: Corded Electric
• Item Weight: 4.1 pounds
• Maximum Flow Rate: 1.33 gpm
• Maximum Lifting Height: 20 feet
• Voltage: 115 volts
• Global Trade Identification Number: 00010121544253
• Number of Items: 1
• Unit Count: 1 Count
